ACOPOWER Mono Solar RV Kits + MPPT / PWM Charge Controller

SKU: HY-SPKM-100W20A
¥27,500
¥27,500
SOLAR KIT SIZE: 100W PWM20A

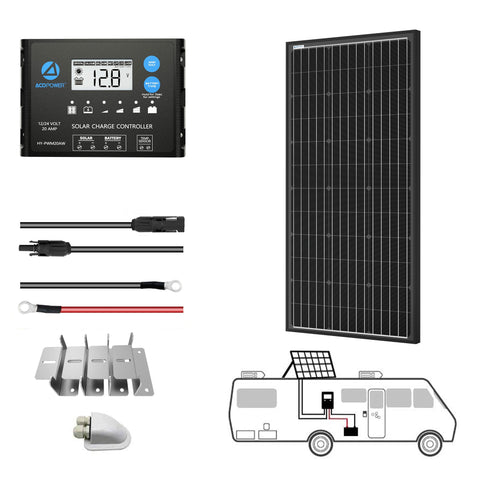

Taking a trip in your RV can create lifetime memories. Don't let traditional gas-powered generators or power hookups slow you down. ACOPower 100Watt 20A Mono Solar RV Kit silently recharges your batteries so you can enjoy the great outdoors without the extra noise. Solar panels also allow you to run limited low-watt electrical equipment without a power hookup.
    ACOPOWER Mono Solar RV Kits + MPPT / PWM Charge Controller

    ACOPOWER Mono Solar RV Kits + MPPT / PWM Charge Controller

    ¥27,500

    ACOPOWER Mono Solar RV Kits + MPPT / PWM Charge Controller

    ¥27,500
    SOLAR KIT SIZE: 100W PWM20A

      Class A RVs

      Class A RVs

      Basically 6 sets of solar panels, normally between 100W to 300W

      Basically 6 sets of solar panels, normally between 100W to 300W

      Class B RVs

      Class B RVs

      Basically needs 300W-600W solar panels

      Basically needs 300W-600W solar panels

      Travel Trailer

      Travel Trailer

      Basically needs 200W/300W/400W solar panels

      Basically needs 200W/300W/400W solar panels

      Class C RVs

      Class C RVs

      Basically needs 600-800w solar panels(A substantial amount of space is available for the installation of solar panels.)

      Basically needs 600-800w solar panels(A substantial amount of space is available for the installation of solar panels.)

      • ACOPOWER 200 WATTS ALL BLACK MONO SOLAR PANEL
      • Peak Power (Pmax):200W
      • Max Power Voltage(Vmp):20.4V
      • Max Power Current(Imp):9.8A
      • Weight:26.5 lb/12kg
      • Peak Circuit Voltage(Voc):24.3V
      • Short Circuit Current(Isc): 10.2A
      • Wind resistance:2400pa
      • Dimension: 54.72 x 27.56x 1.3 Inch
      • Peak Power (Pmax):200W
      • Max Power Voltage(Vmp):20.4V
      • Max Power Current(Imp):9.8A
      • Weight:26.5 lb/12kg
      • Peak Circuit Voltage(Voc):24.3V
      • Short Circuit Current(Isc): 10.2A
      • Wind resistance:2400pa
      • Dimension: 54.72 x 27.56x 1.3 Inch

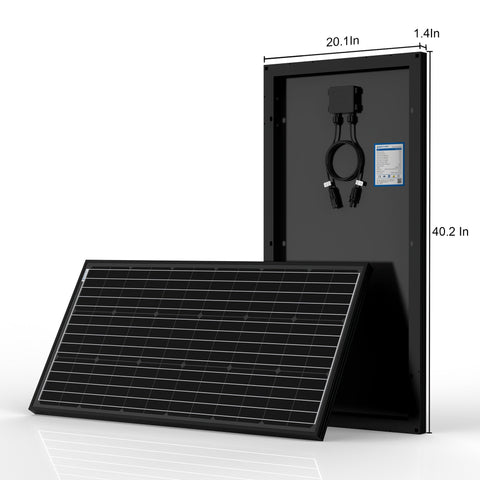

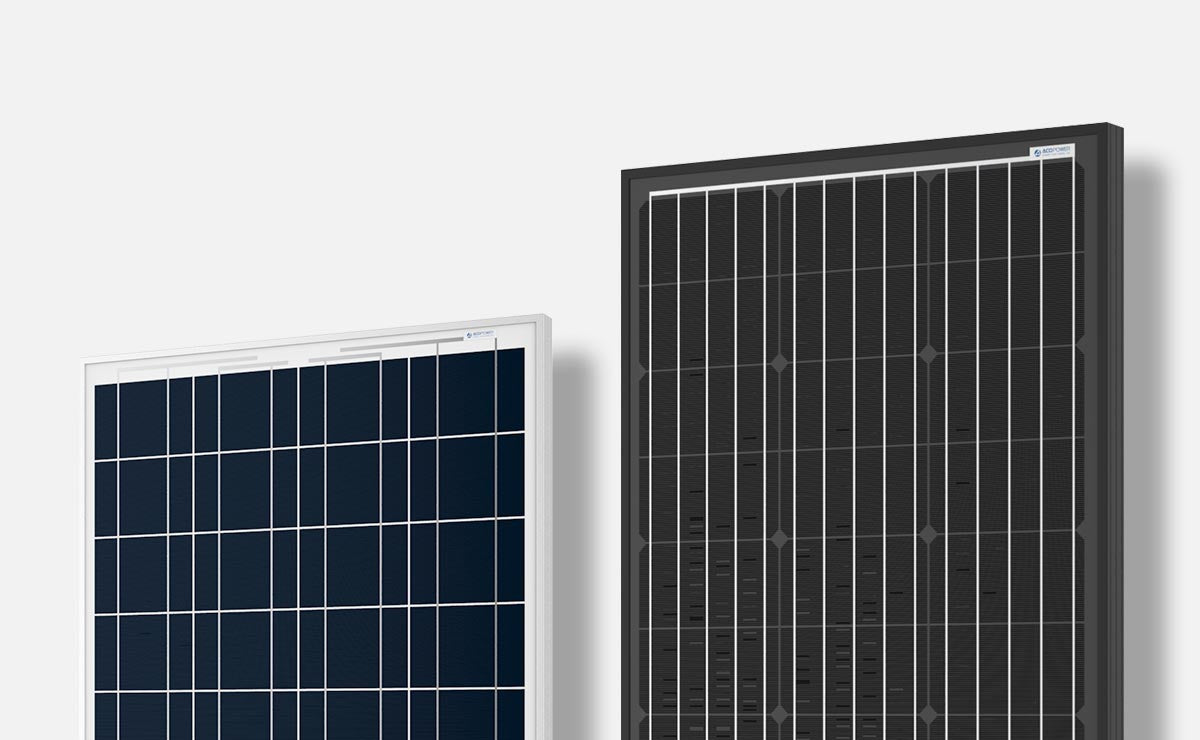

      • ACOPOWER 100 WATTS ALL BLACK MONO SOLAR PANEL
      • Maximum Power at STC (Pmax): 100W
      • Maximum Operating Voltage (Vmp): 17.48V
      • Maximum Operating Current (Imp): 5.71A
      • Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
      • Open-Circuit Voltage (Voc): 22V
      • Short-Circuit Current (Isc): 6.14A
      • Operating Temperature: -40ºC to 85ºC
      • Weight: 9.5kg / 20.9 lbs
      • Maximum Power at STC (Pmax): 100W
      • Maximum Operating Voltage (Vmp): 17.48V
      • Maximum Operating Current (Imp): 5.71A
      • Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
      • Open-Circuit Voltage (Voc): 22V
      • Short-Circuit Current (Isc): 6.14A
      • Operating Temperature: -40ºC to 85ºC
      • Weight: 9.5kg / 20.9 lbs

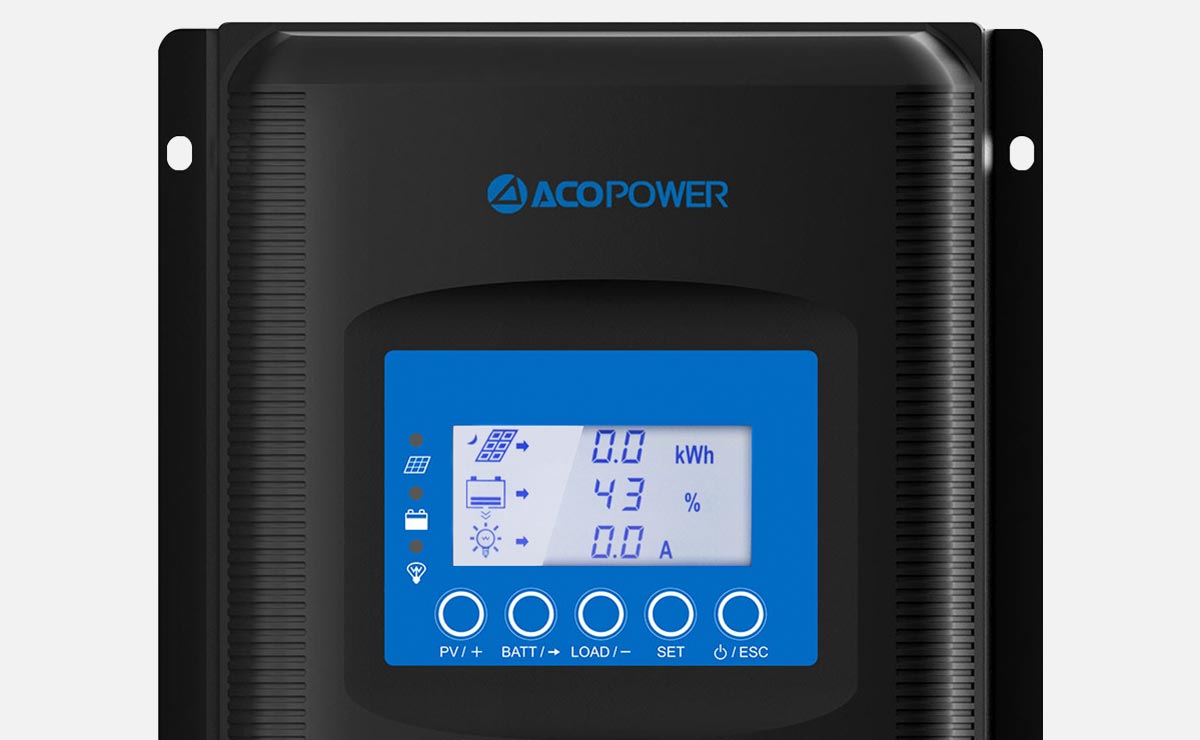

      • ACOPOWER 60A MPPT SOLAR CHARGE CONTROLLER
      • Nominal System Voltage: 12v/24v/36v/48v DC auto work
      • Rated Charge Current: 60A
      • Max. PV Open Circuit Voltage: 150V/138V
      • Max. PV input power: 1125W/12V, 2250W/24V, 2812.5W/36V ,4500W/48V
      • MPPT Voltage Range: (Battery Voltage+2V) ~72V
      • Dimension:261*216*119mm
      • Grounding: Common negative
      • Battery Input Voltage Range: 8V~32V
      • MPP voltage range:V(BAT)+2V~108V
      • Rated Charge Power : 750W/12V, 1500W/24V, 2250W/36V ,3000W/48V
      • RS485 Interface: 5VDC/200mA(RJ45)
      • Installion Notes:First connect the battery;Then connect the load; Finally connect the solar panel.
      • Nominal System Voltage: 12v/24v/36v/48v DC auto work
      • Rated Charge Current: 60A
      • Max. PV Open Circuit Voltage: 150V/138V
      • Max. PV input power: 1125W/12V, 2250W/24V, 2812.5W/36V ,4500W/48V
      • MPPT Voltage Range: (Battery Voltage+2V) ~72V
      • Dimension:261*216*119mm
      • Grounding: Common negative
      • Battery Input Voltage Range: 8V~32V
      • MPP voltage range:V(BAT)+2V~108V
      • Rated Charge Power : 750W/12V, 1500W/24V, 2250W/36V ,3000W/48V
      • RS485 Interface: 5VDC/200mA(RJ45)
      • Installion Notes:First connect the battery;Then connect the load; Finally connect the solar panel.
      • ACOPOWER 50A MPPT SOLAR CHARGE CONTROLLER
      • Nominal System Voltage: 12v/24v/36v/48v DC Auto
      • Rated Charge Current: 50A
      • Max. PV Open Circuit Voltage: 150V/138V
      • MPP Voltage Range: V(BAT)+2V~108V
      • Working temperature: -25℃~+50℃
      • RS485 Interface: RS485(RJ45)
      • Dimension: 261*216*119mm
      • Grounding: Common negative Design
      • Battery Input Voltage Range: 8V~68V
      • Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
      • Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
      • Storage temperature: -20℃~+70℃
      • Enclosure: IP33
      • Terminals: 16mm2/6AWG
      • Nominal System Voltage: 12v/24v/36v/48v DC Auto
      • Rated Charge Current: 50A
      • Max. PV Open Circuit Voltage: 150V/138V
      • MPP Voltage Range: V(BAT)+2V~108V
      • Working temperature: -25℃~+50℃
      • RS485 Interface: RS485(RJ45)
      • Dimension: 261*216*119mm
      • Grounding: Common negative Design
      • Battery Input Voltage Range: 8V~68V
      • Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
      • Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
      • Storage temperature: -20℃~+70℃
      • Enclosure: IP33
      • Terminals: 16mm2/6AWG
      • ACOPOWER MIDAS 40A MPPT SOLAR CHARGE CONTROLLER
      • Nominal System Voltage: 12/24VDC Auto
      • Rated Charge Current: 40A
      • Max. PV Open Circuit Voltage: 100V (1) 92V (2)
      • MPPT Voltage Range: (Battery Voltage+2V) ~72V
      • Working temperature: -25℃~+50℃
      • Terminals: Up to 6 AWG
      • Dimension: 10x7.28x2.67 in / 255×185×67.8mm
      • Grounding: Common negative
      • Battery Input Voltage Range: 8V~32V
      • Rated charge Power: 520W/12V 1040W/24V
      • RS485 Interface: 5VDC/200mA(RJ45)
      • Storage temperature: -20℃~+70℃
      • Enclosure: IP33
      • Weight: 3.75lbs / 1.7kg
      • Nominal System Voltage: 12/24VDC Auto
      • Rated Charge Current: 40A
      • Max. PV Open Circuit Voltage: 100V (1) 92V (2)
      • MPPT Voltage Range: (Battery Voltage+2V) ~72V
      • Working temperature: -25℃~+50℃
      • Terminals: Up to 6 AWG
      • Dimension: 10x7.28x2.67 in / 255×185×67.8mm
      • Grounding: Common negative
      • Battery Input Voltage Range: 8V~32V
      • Rated charge Power: 520W/12V 1040W/24V
      • RS485 Interface: 5VDC/200mA(RJ45)
      • Storage temperature: -20℃~+70℃
      • Enclosure: IP33
      • Weight: 3.75lbs / 1.7kg
      • ACOPOWER 30A MPPT SOLAR CHARGE CONTROLLER
      • Nominal system voltage: 12/24VDC Auto
      • Battery input voltage range: 8V~32V
      • Max.PV input power: 12V/390W, 24V/780W
      • Working environment temperature: -25℃~+50℃
      • Grounding: Common negative
      • Power Terminals: 6AWG(16mm2)
      • Dimensions: 228x164x55mm
      • Rated charge current: 30A
      • Max.PV open circuit voltage: 100VDC
      • MPP voltage range: V(BAT+2V)~72V
      • Storage temperature range: -35℃~+80℃
      • Communication: RS485
      • Enclosure: IP30
      • Weight: 1.2kg
      • Nominal system voltage: 12/24VDC Auto
      • Battery input voltage range: 8V~32V
      • Max.PV input power: 12V/390W, 24V/780W
      • Working environment temperature: -25℃~+50℃
      • Grounding: Common negative
      • Power Terminals: 6AWG(16mm2)
      • Dimensions: 228x164x55mm
      • Rated charge current: 30A
      • Max.PV open circuit voltage: 100VDC
      • MPP voltage range: V(BAT+2V)~72V
      • Storage temperature range: -35℃~+80℃
      • Communication: RS485
      • Enclosure: IP30
      • Weight: 1.2kg

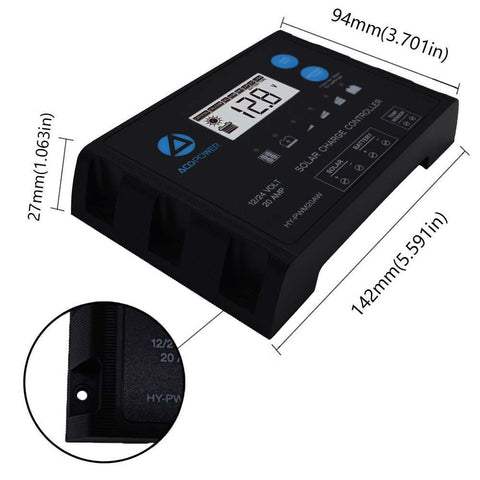

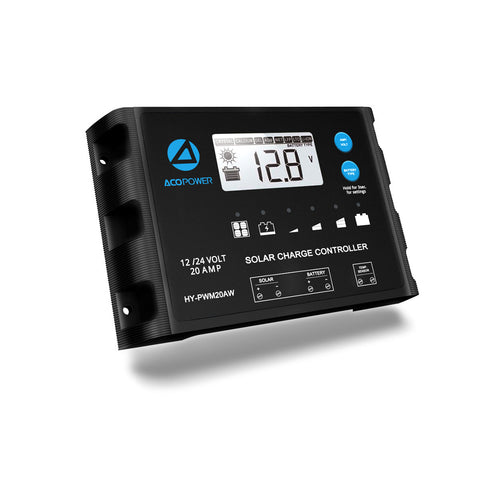

      • ACOPOWER 20A PWM CHARGE CONTROLLER
      • Nominal Voltage: 12V/24V DC
      • Rated Charge Current: 20A
      • Battery Start Charging Voltage: 3V
      • Operating Temperature: -40°F to 140°F
      • Terminals: Up to 10 AWG
      • Dimensions: 5.59x 3.7x 1.06 inches
      • Grounding: Common Negative
      • Max. PV Input Voltage: 50V
      • Temperature Compensation Coefficient: -24mV/°C
      • Storage Temperature: -40°F to 185°F
      • Enclosure: IP65
      • Weight: 1.1 lbs
      • Nominal Voltage: 12V/24V DC
      • Rated Charge Current: 20A
      • Battery Start Charging Voltage: 3V
      • Operating Temperature: -40°F to 140°F
      • Terminals: Up to 10 AWG
      • Dimensions: 5.59x 3.7x 1.06 inches
      • Grounding: Common Negative
      • Max. PV Input Voltage: 50V
      • Temperature Compensation Coefficient: -24mV/°C
      • Storage Temperature: -40°F to 185°F
      • Enclosure: IP65
      • Weight: 1.1 lbs
      • WARRANTY INFORMATION
      • Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
      • Solar Charge Controllers: The controller itself comes with a 1-year warranty.
      • Accessories: 1-year material warranty
      • Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
      • Solar Charge Controllers: The controller itself comes with a 1-year warranty.
      • Accessories: 1-year material warranty
