Description

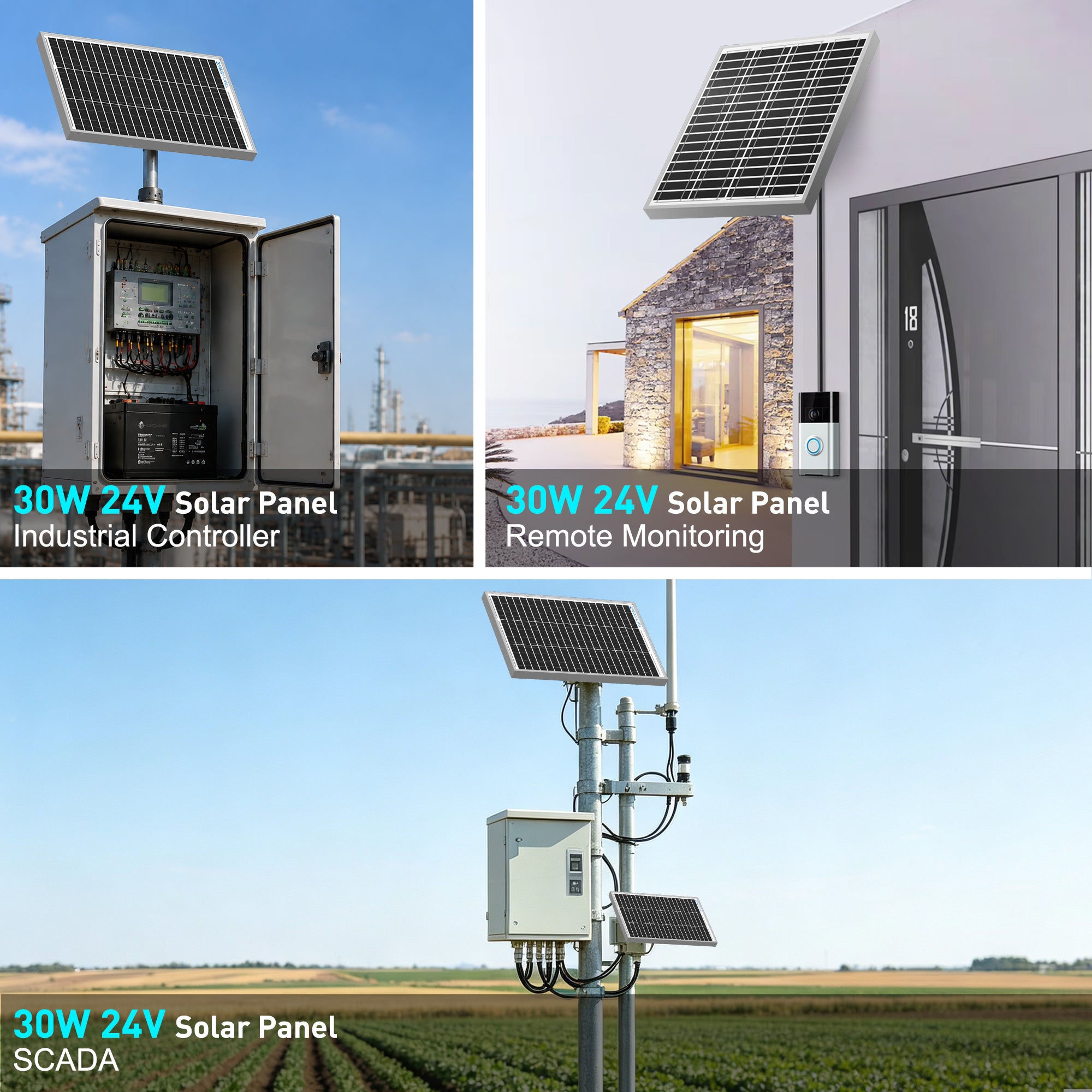

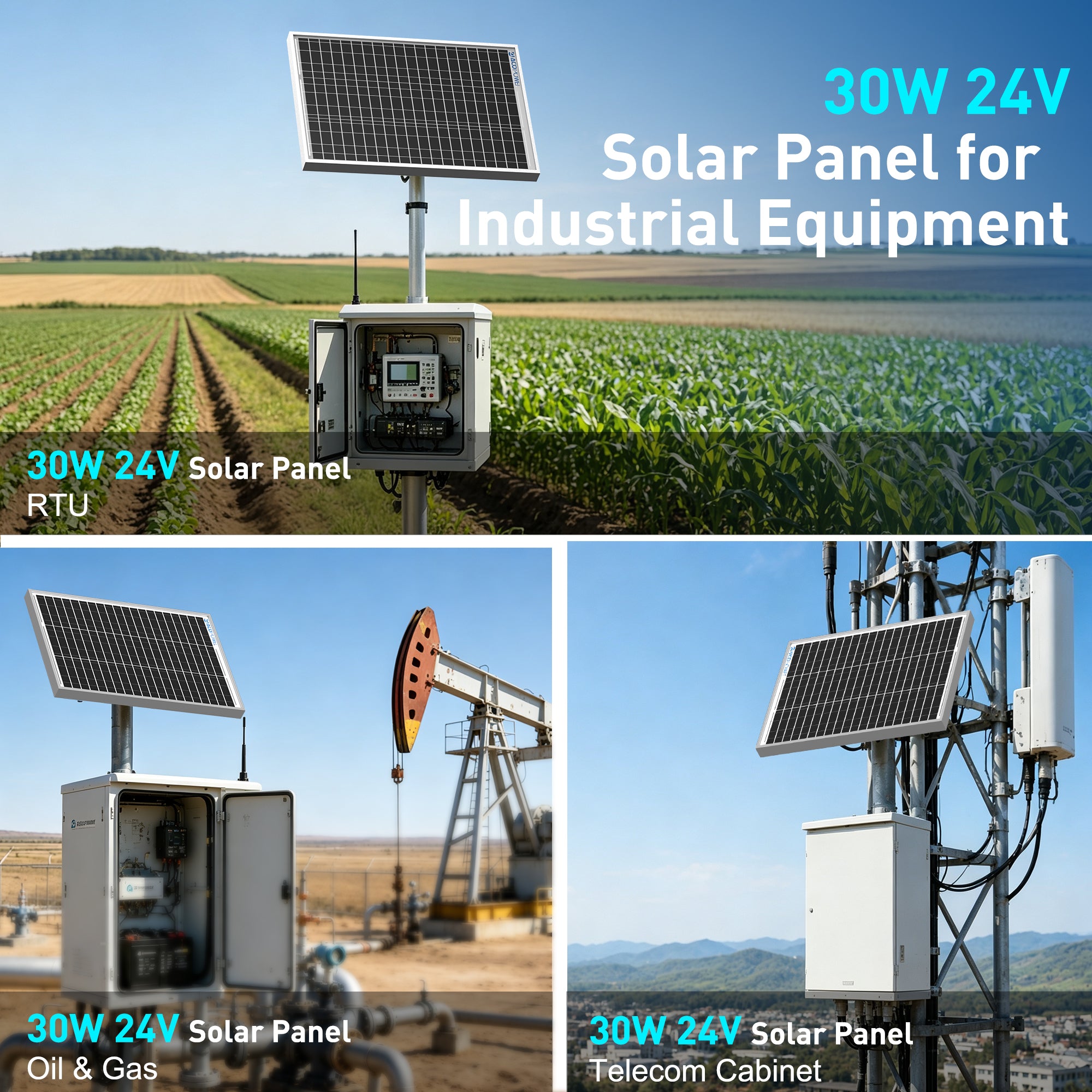

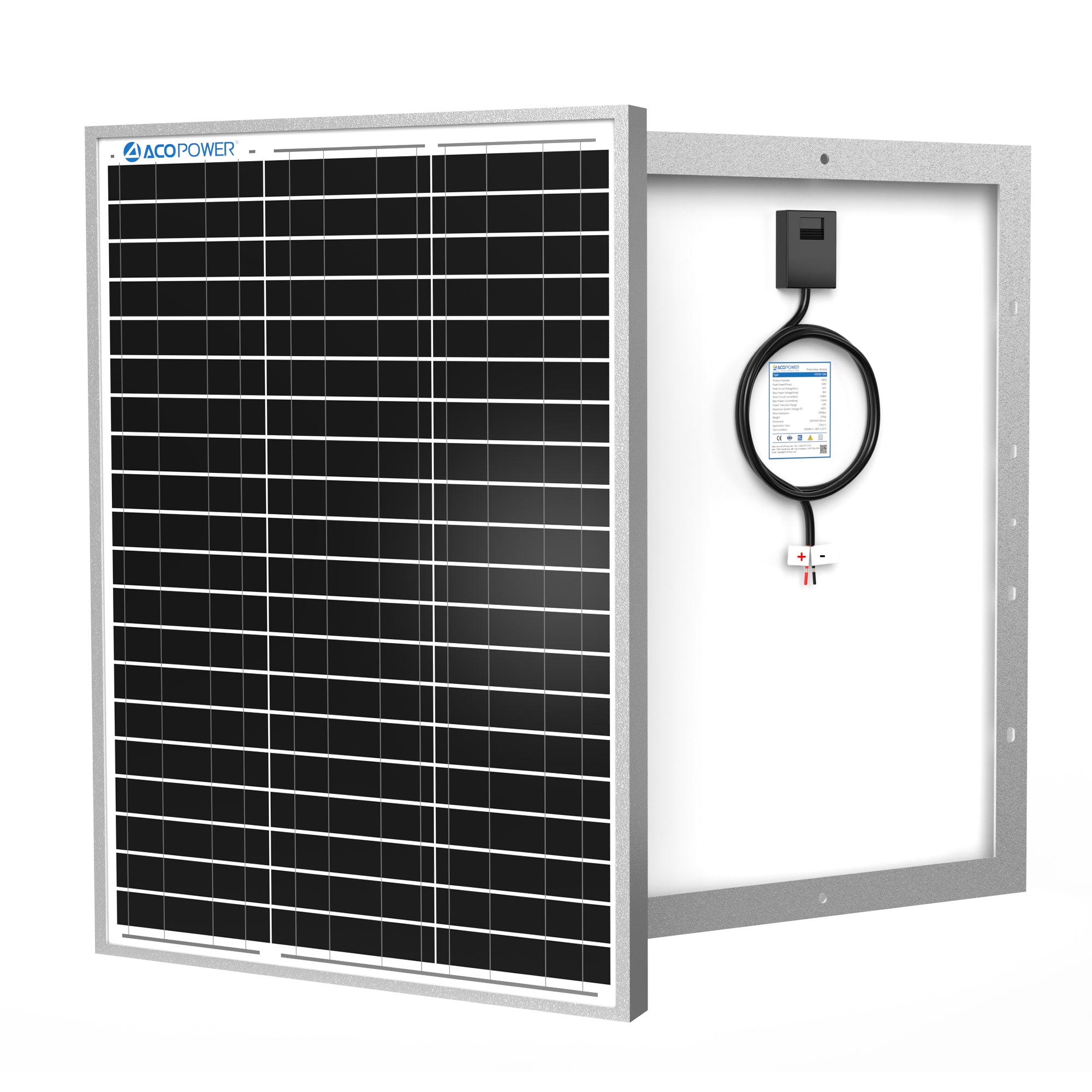

xACOPOWER 30W 24V high-efficiency monocrystalline solar panel is designed for reliable low-power off-grid and industrial applications, including weather stations, security cameras, gate openers, telecommunications, lighting, water pumping and remote monitoring equipment.
Key Features
- 24V DC standard output
- 25.0% high-efficiency monocrystalline module

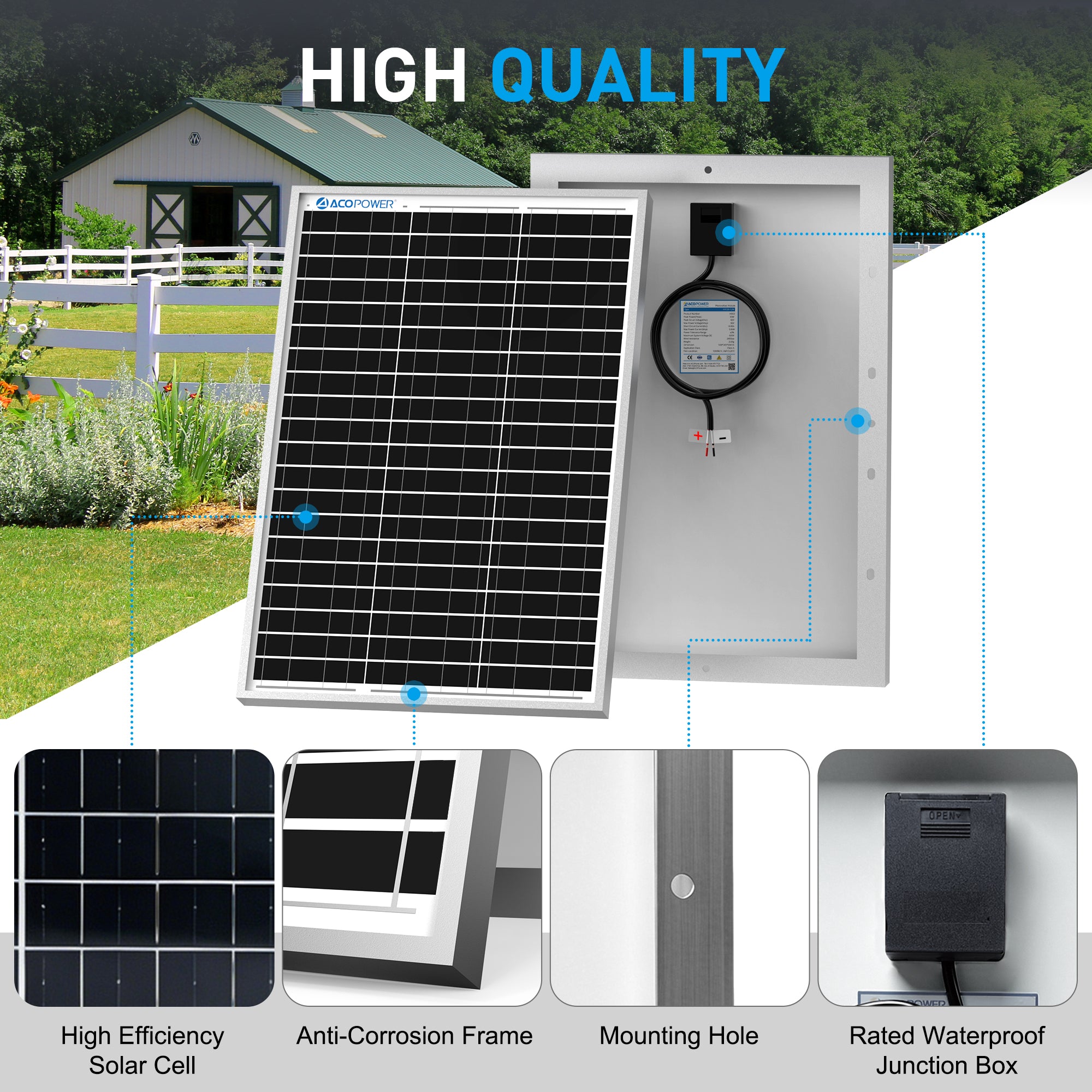

- IP67-rated junction box
- High-transmission anti-reflective tempered glass
- Corrosion-resistant anodized aluminum frame
- Strong low-light performance
- Pre-drilled holes for flexible mounting
- 39.4 in (1000 mm) 16AWG output cable
- Operating temperature: -40°F to 185°F
- 5-year product warranty and 25-year output guarantee
Specifications
| Model / SKU | HY030-24M |
| Maximum power | 30W |
| Vmp | 36V |
| Imp | 0.84A |
| Voc | 42V |
| Isc | 0.88A |
| Module efficiency | 25.0% |
| Panel dimensions | 19.69 × 13.58 × 1.18 in |
| Panel weight | 4.0 lb |
| Package weight | 4.9 lb |
| UPC | 810073757332 |
| Maximum system voltage | 600 VDC |
Matching mounting brackets are sold separately.
