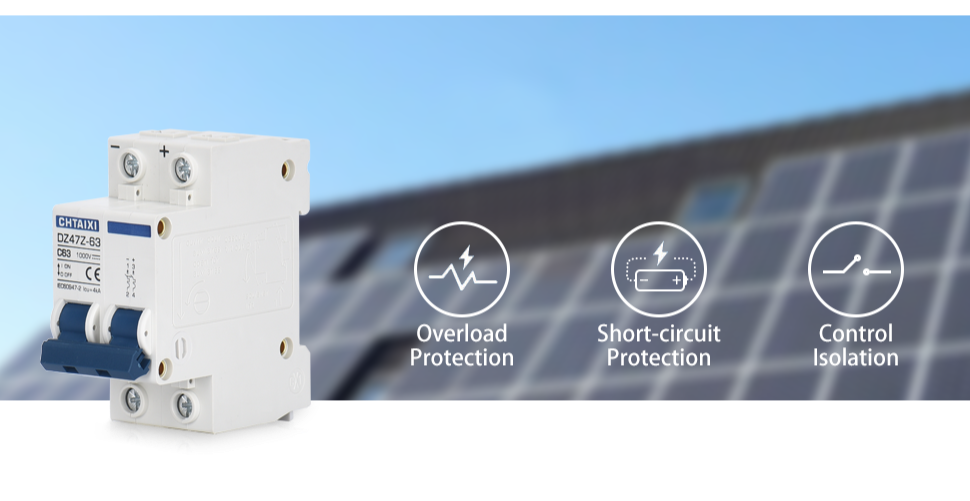

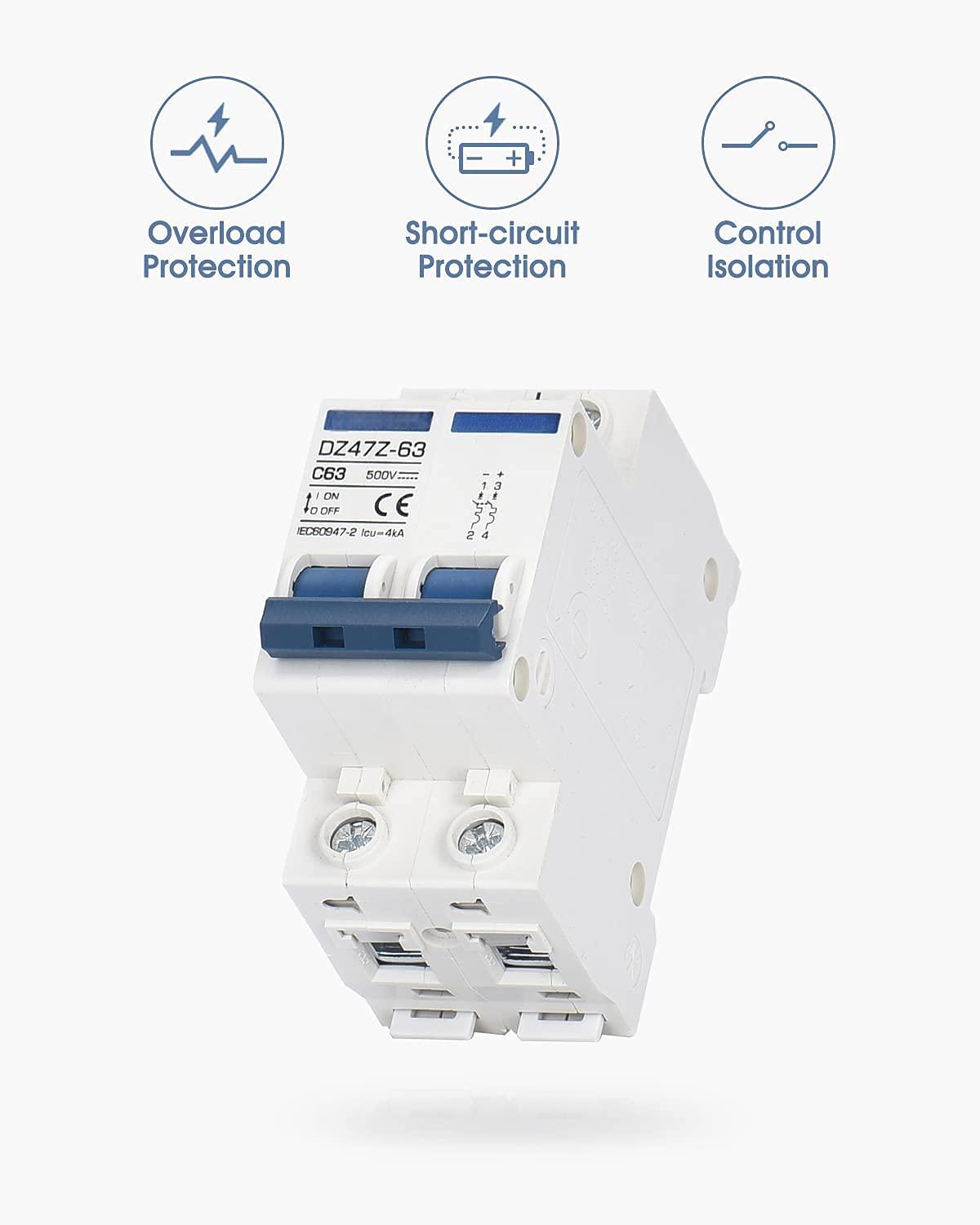

DC Miniature Circuit BreakerWarm Tips:
- Pay attention to polarity.
- Select wire size according to rated current.
Quality Products to Protect Your Electricity Safety
Polarity Marked

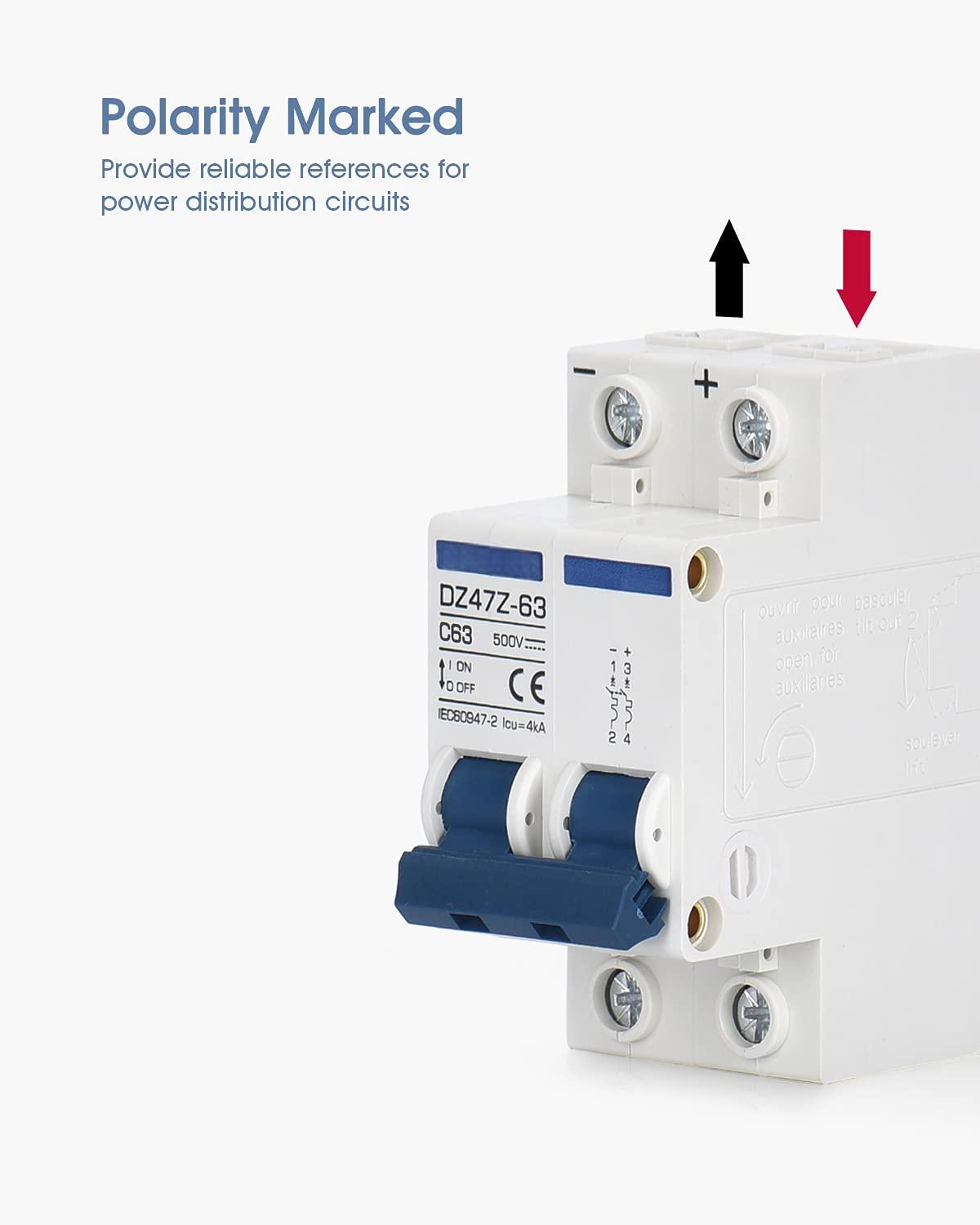

This DC MCB has no polarity requirement in use, and the positive and negative poles can be inverted. However, the installation, use, and maintenance of DC circuits are based on polarity requirements. So, in order to provide reliable indication and reference for the distribution, we highly recommend that you connect the wires according to the marked polarity.
Tunnel Terminal
The clamping design of the terminal block is designed to connect firmly, and the tightening torque is 2.5 N.m. ( Soft silicone wire needs to crimp fixed the wire end with copper crimp before wiring. ) Make sure that the wires are tightly connected when connecting to prevent loosening and heating. The surface of the terminal is tin-plated, and the plating layer can improve conductivity, corrosion resistance, and durability.

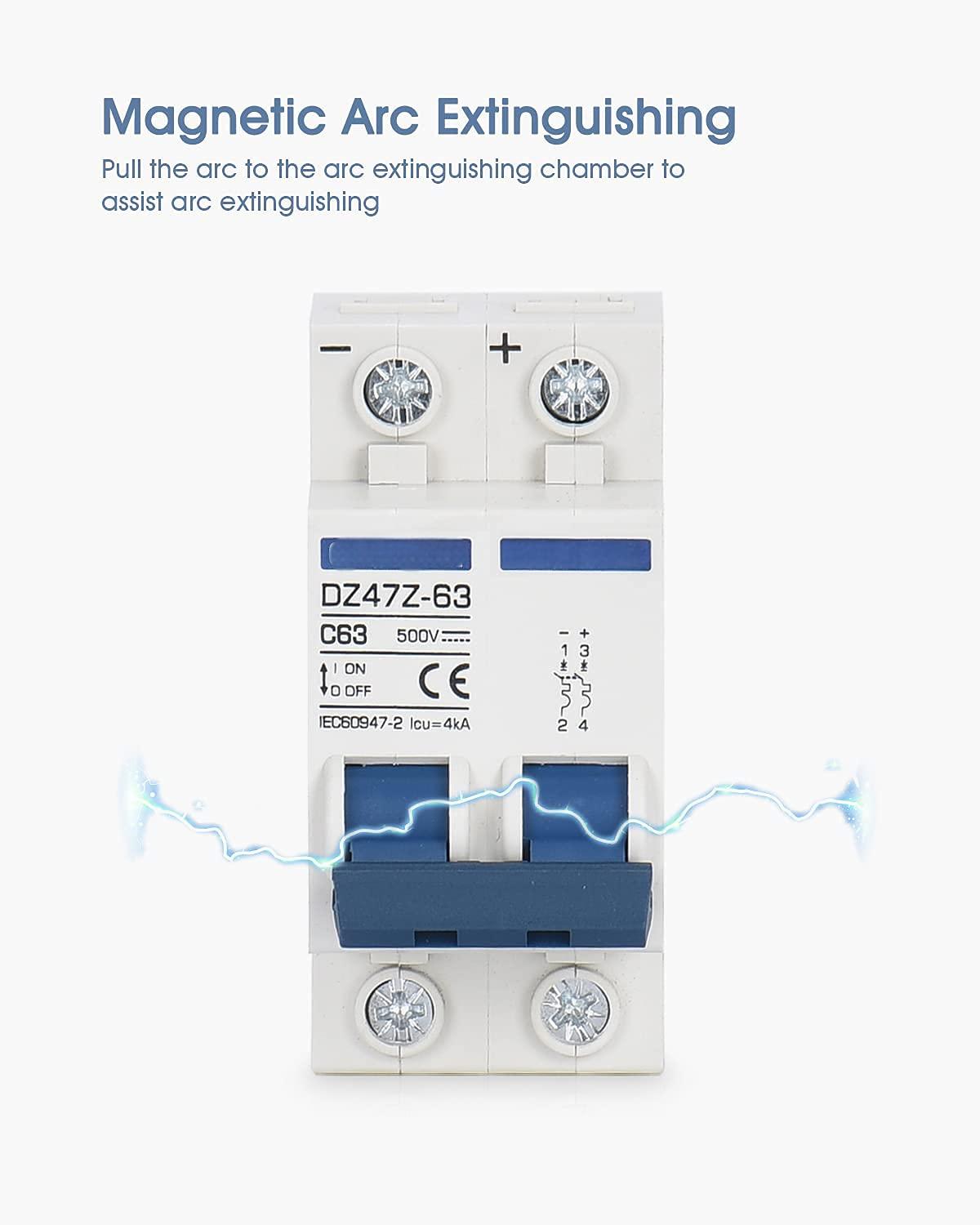

Silver Alloy Contacts

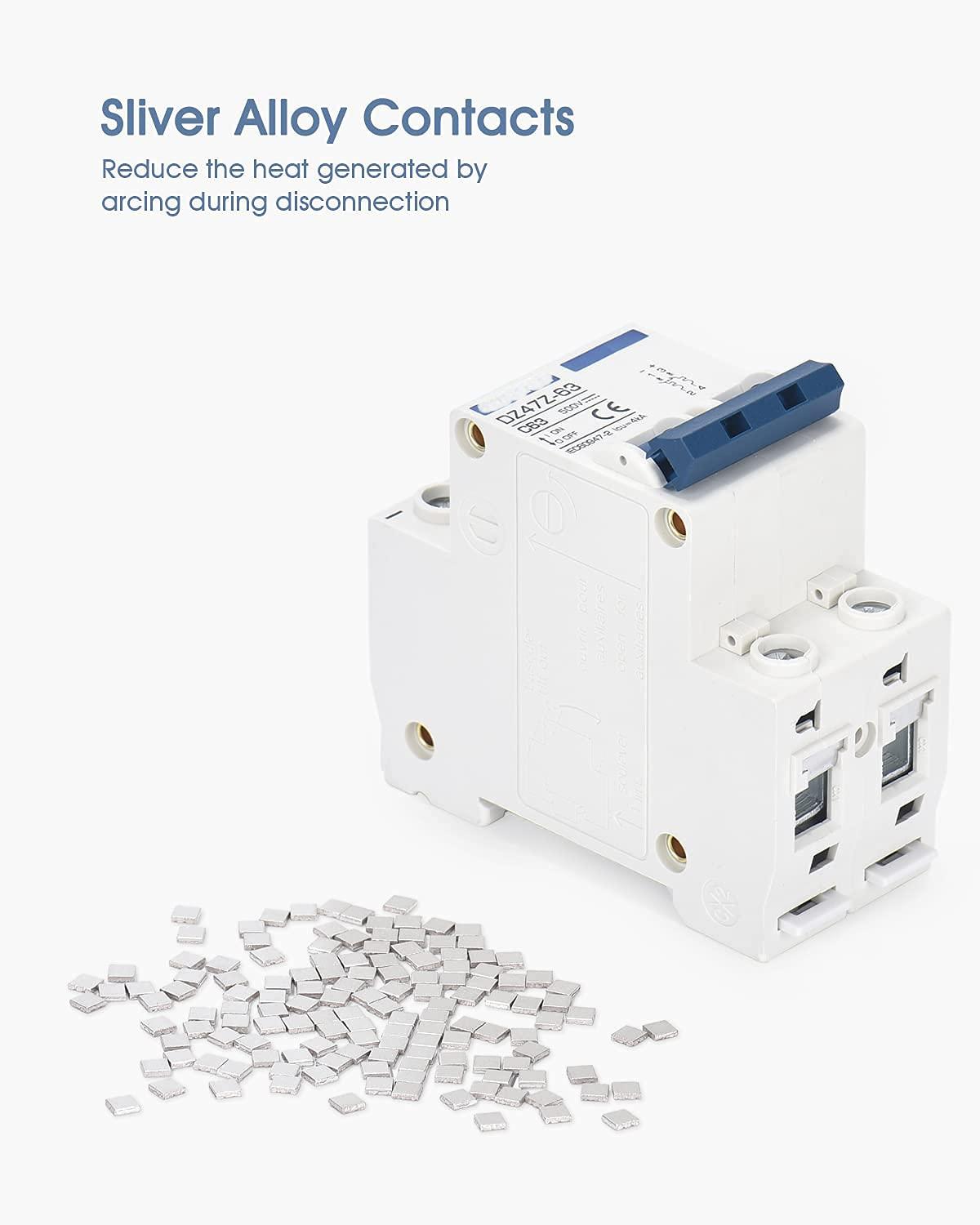

Contacts are very important to circuit breakers, especially for DC distribution with high arc extinguishing requirements. Good contacts can reduce the heat generated by arcing during disconnection and reduce the wear of the contacts. This DC circuit breaker uses silver alloy contacts, which improves electrical durability, and protects your electricity safety for a long time.

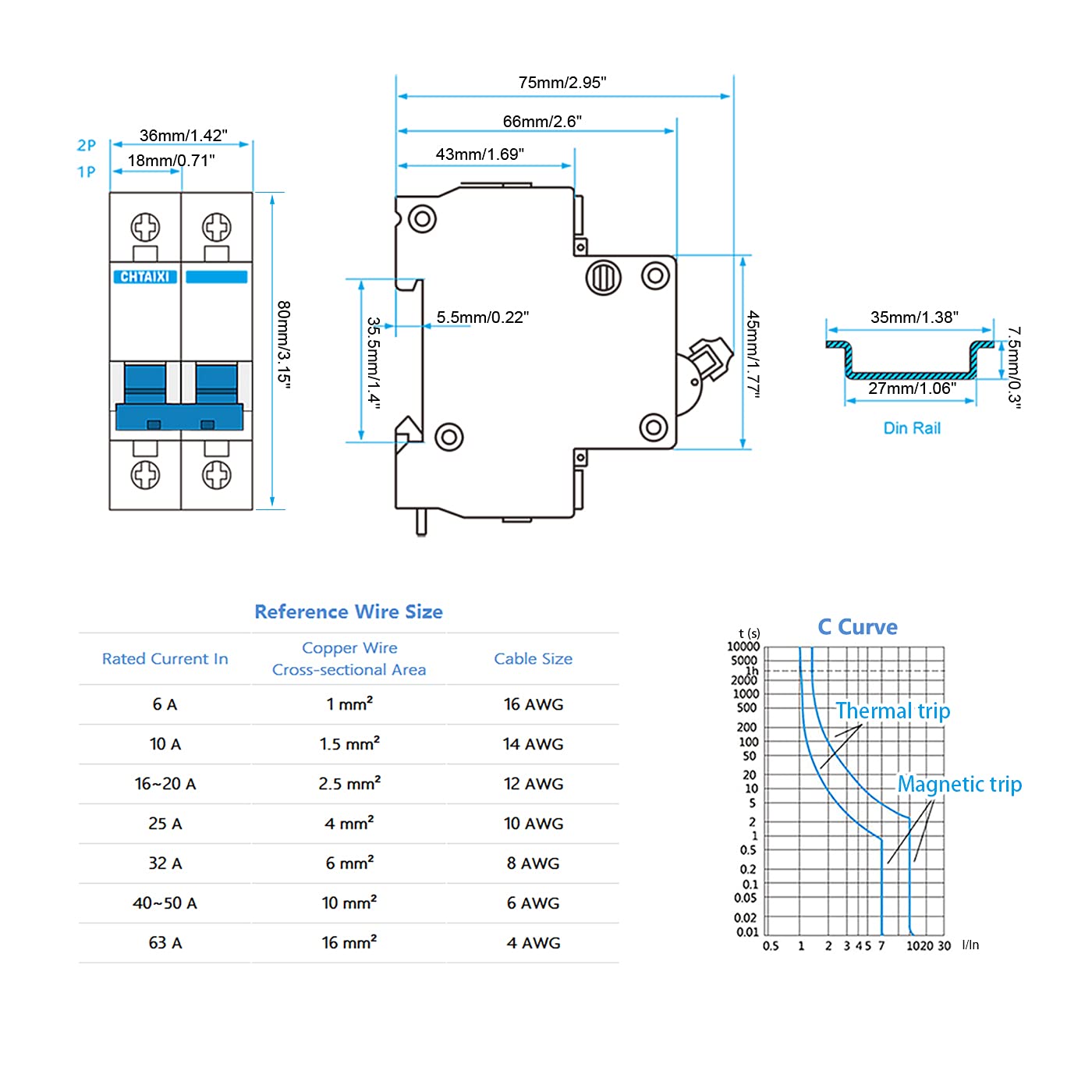

Specifications
| product type | DC Miniature Circuit Breaker |
| rated operational voltage | 500 V / 1000 V (optional) DC |
| rated current [In] | 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional) |
| poles | 2 P |
| trip unit technology | Thermal-magnetic |
| curve code | C |
| breaking capacity | 4 kA Ics=Icu |
| Uimp | 4 kV |
| mechanical durability | 10000 cycles |
| electrical durability | 2000 cycles |
| operating temperature | -13°F(-25℃) ~ 140°F(60℃) |
| mounting support | 35 mm DIN rail |
| tightening torque | 2.5 N.m |
| standard | IEC60947-2 |

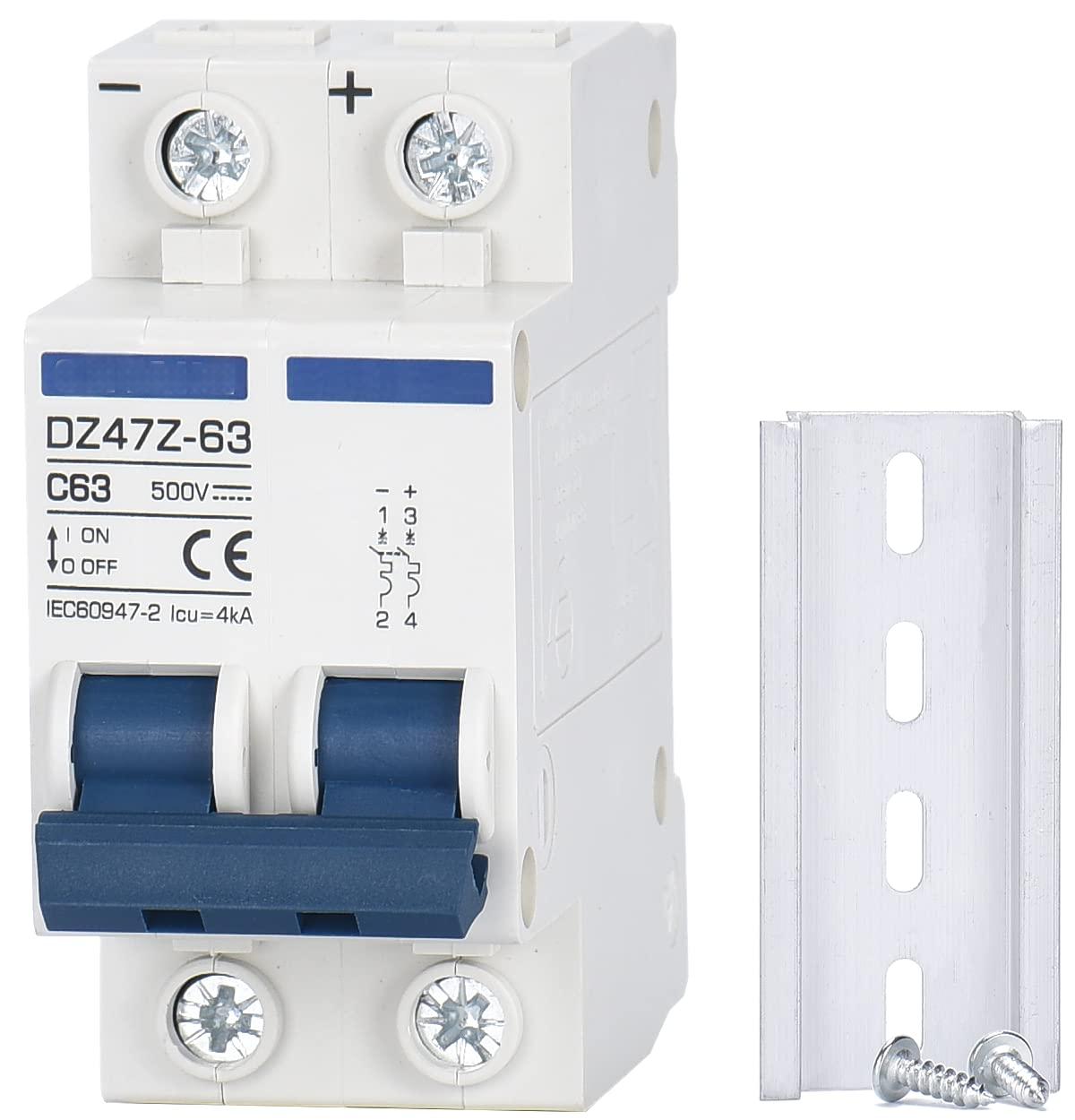

| package includes | 1 x DC miniature circuit breaker, 1 x DIN rail, 2 x screws |

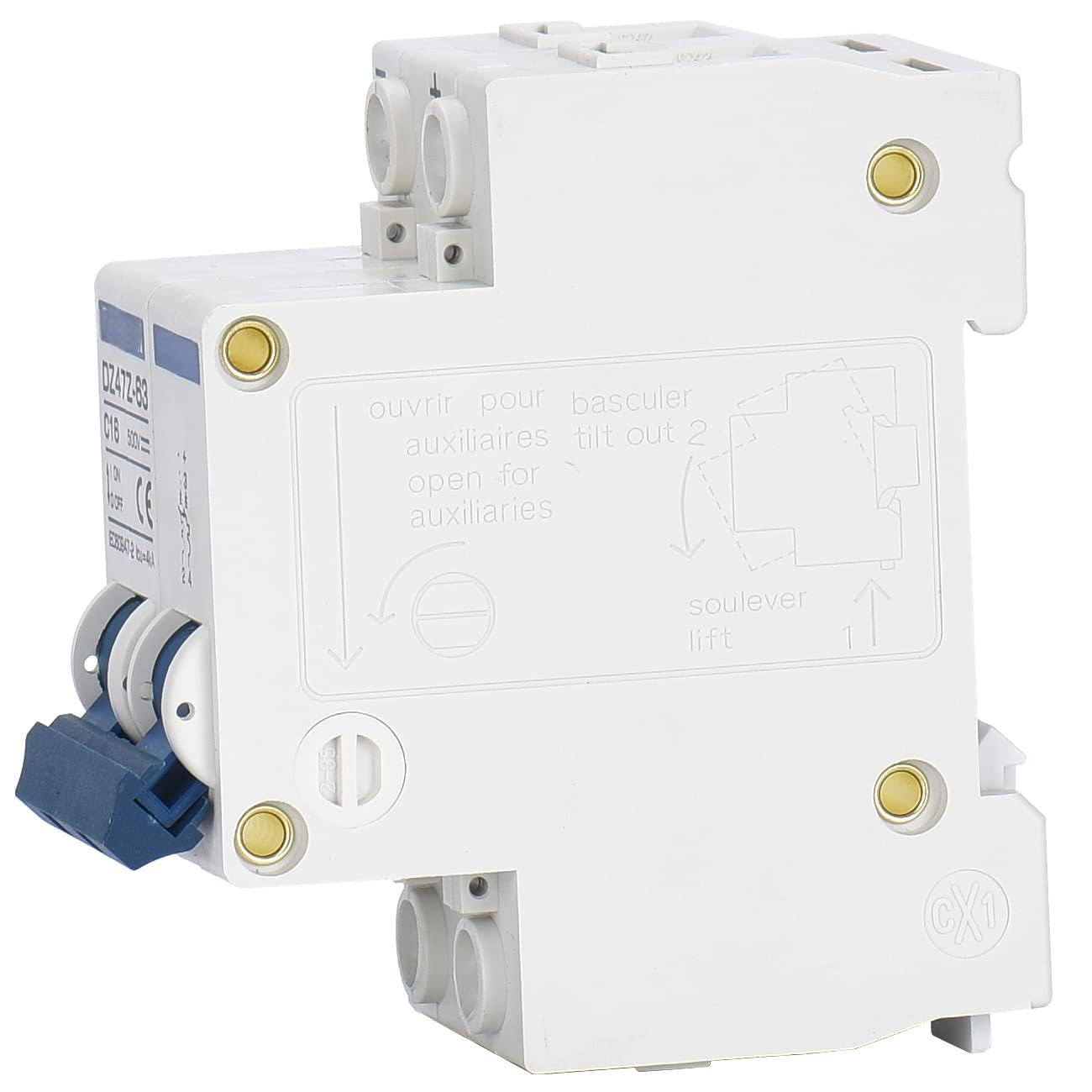

Installation
DIN Rail
Install the 35mm DIN rail horizontally in a stable environment.
Installation
- Hang the circuit breaker slot on the DIN rail
- Push the lower end of the circuit breaker into the DIN rail
Dismounting
- Push the circuit breaker upward
- Turn the upper end of the circuit breaker out of the DIN rail
