ACOPOWER Mono Solar RV Kits + MPPT / PWM Charge Controller

通常価格 ¥27,300
セール価格 ¥27,300 通常価格

Christmas Sale discount code will be automatically applied once you add the product to the cart, or reach to the checkout page.

SOLAR KIT SIZE
税込み。 配送料はチェックアウト時に計算されます。

で利用可能なピックアップ Walnut USA

通常24時間で準備が完了します

ACOPOWER Mono Solar RV Kits + MPPT / PWM Charge Controller

100W PWM20A
  • Walnut USA

    送迎あり, 通常24時間で準備が完了します

    4120 VALLEY BLVD
    Walnut CA 91789
    アメリカ合衆国

    +16265757722

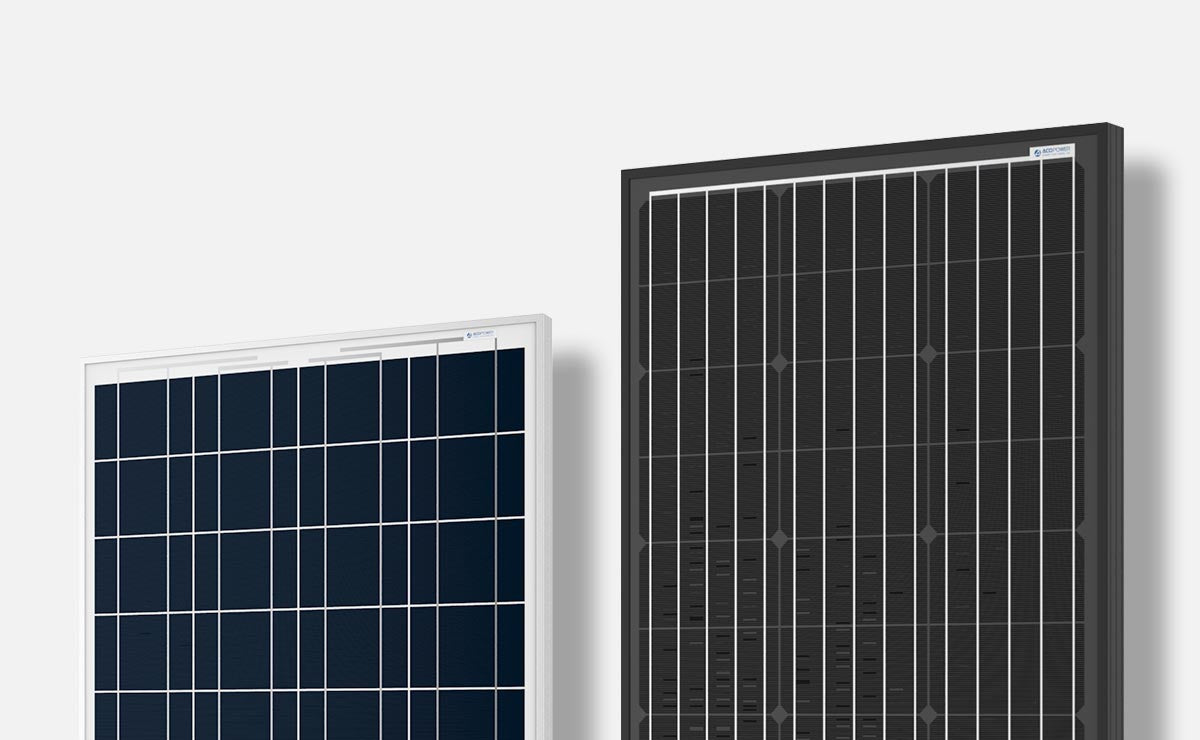

High solar cell efficiency

Charge controllers efficiency reaches 80-90%, enable the solar panel to operate at its maximum power point, or more precisely, the optimum voltage and current for maximum power output.

Ultra-fast tracking speed

Manages the charging process of your RV's batteries in three distinct stages: bulk charging, absorption charging, and float charging, ensuring that your batteries are charged optimally, maximizing their lifespan and performance while preventing overcharging.

Reliable & Safe

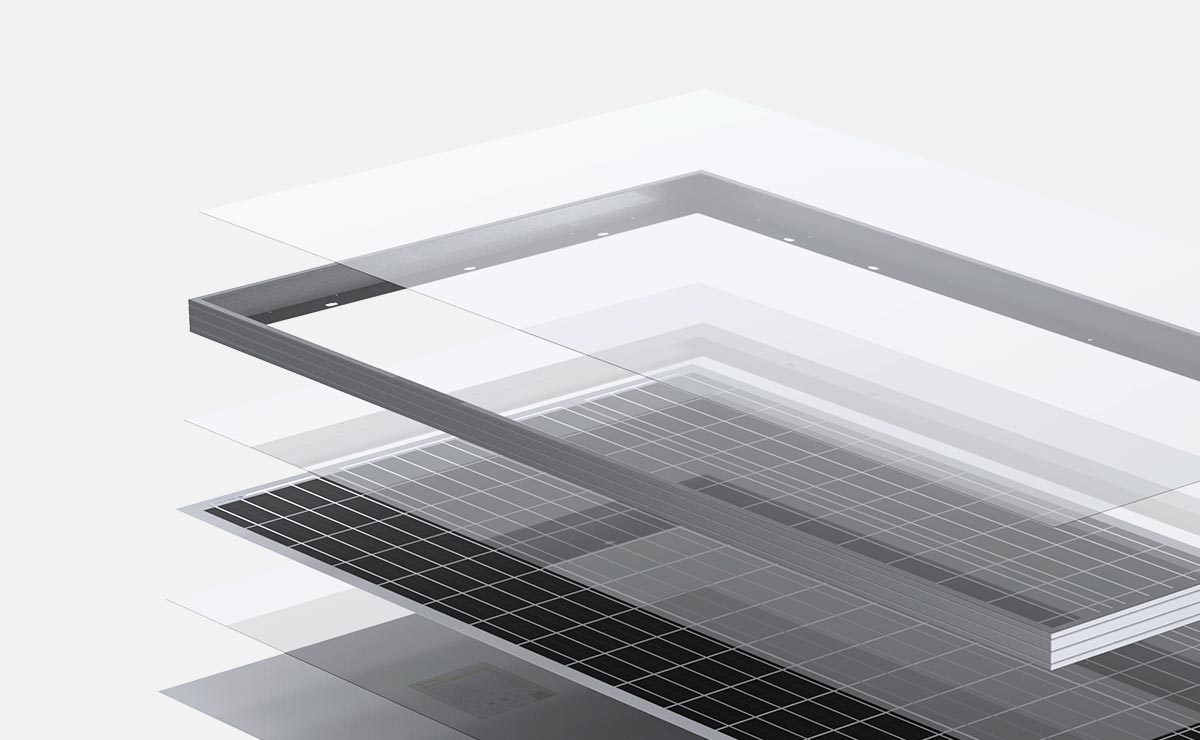

Electronic protections: reverse current, overcharging, short-circuit and reversed polarity. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for 25 years.

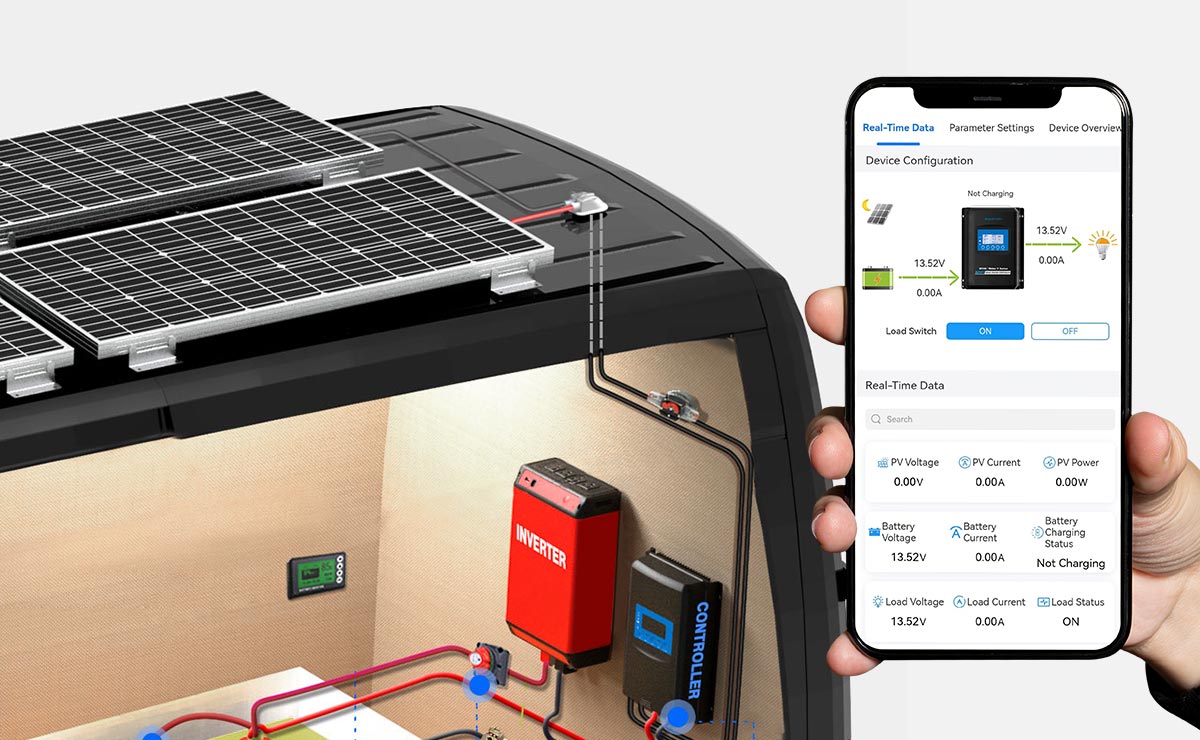

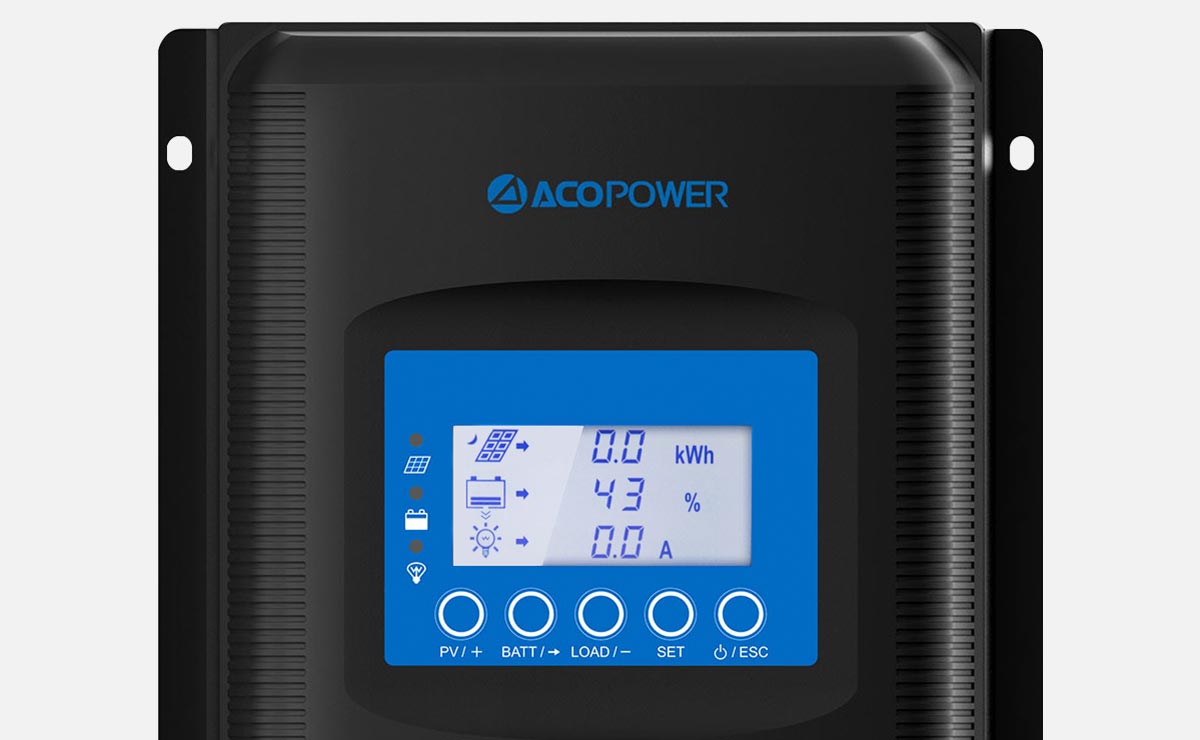

Smart APP Control

Remote monitoring and Bluetooth control, a programmable interface with a multi-function LCD for displaying system information, and accurate recognition and tracking capabilities.

  • ACOPOWER 200 WATTS ALL BLACK MONO SOLAR PANEL
  • Peak Power (Pmax):200W
  • Max Power Voltage(Vmp):20.4V
  • Max Power Current(Imp):9.8A
  • Weight:26.5 lb/12kg
  • Peak Circuit Voltage(Voc):24.3V
  • Short Circuit Current(Isc): 10.2A
  • Wind resistance:2400pa
  • Dimension: 54.72 x 27.56x 1.3 Inch
  • Peak Power (Pmax):200W
  • Max Power Voltage(Vmp):20.4V
  • Max Power Current(Imp):9.8A
  • Weight:26.5 lb/12kg
  • Peak Circuit Voltage(Voc):24.3V
  • Short Circuit Current(Isc): 10.2A
  • Wind resistance:2400pa
  • Dimension: 54.72 x 27.56x 1.3 Inch

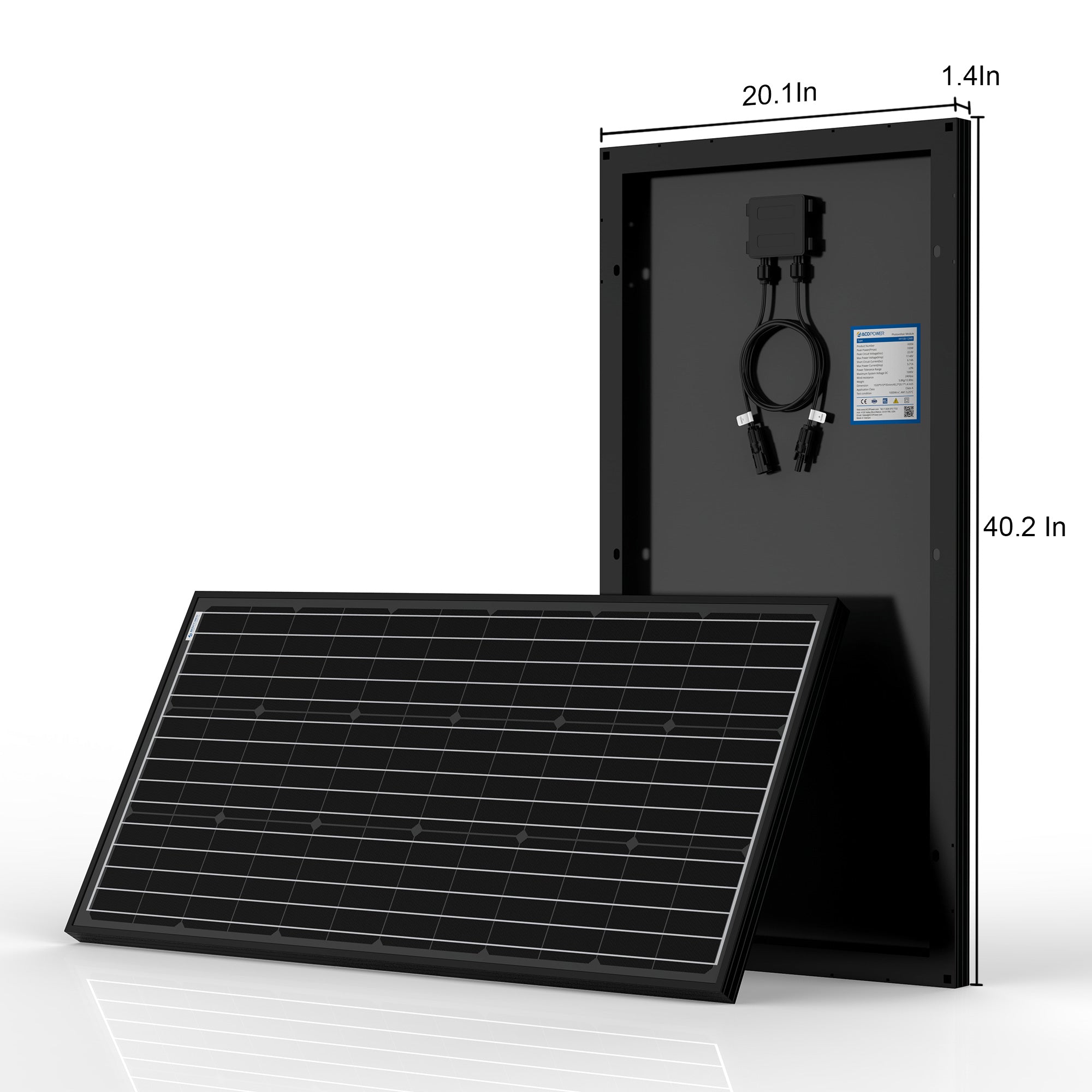

  • ACOPOWER 100 WATTS ALL BLACK MONO SOLAR PANEL
  • Maximum Power at STC (Pmax): 100W
  • Maximum Operating Voltage (Vmp): 17.48V
  • Maximum Operating Current (Imp): 5.71A
  • Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
  • Open-Circuit Voltage (Voc): 22V
  • Short-Circuit Current (Isc): 6.14A
  • Operating Temperature: -40ºC to 85ºC
  • Weight: 9.5kg / 20.9 lbs
  • Maximum Power at STC (Pmax): 100W
  • Maximum Operating Voltage (Vmp): 17.48V
  • Maximum Operating Current (Imp): 5.71A
  • Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
  • Open-Circuit Voltage (Voc): 22V
  • Short-Circuit Current (Isc): 6.14A
  • Operating Temperature: -40ºC to 85ºC
  • Weight: 9.5kg / 20.9 lbs
  • ACOPOWER 60A MPPT SOLAR CHARGE CONTROLLER
  • Nominal System Voltage: 12v/24v/36v/48v DC auto work
  • Rated Charge Current: 60A
  • Max. PV Open Circuit Voltage: 150V/138V
  • Max. PV input power: 1125W/12V, 2250W/24V, 2812.5W/36V ,4500W/48V
  • MPPT Voltage Range: (Battery Voltage+2V) ~72V
  • Dimension:261*216*119mm
  • Grounding: Common negative
  • Battery Input Voltage Range: 8V~32V
  • MPP voltage range:V(BAT)+2V~108V
  • Rated Charge Power : 750W/12V, 1500W/24V, 2250W/36V ,3000W/48V
  • RS485 Interface: 5VDC/200mA(RJ45)
  • Installion Notes:First connect the battery;Then connect the load; Finally connect the solar panel.
  • Nominal System Voltage: 12v/24v/36v/48v DC auto work
  • Rated Charge Current: 60A
  • Max. PV Open Circuit Voltage: 150V/138V
  • Max. PV input power: 1125W/12V, 2250W/24V, 2812.5W/36V ,4500W/48V
  • MPPT Voltage Range: (Battery Voltage+2V) ~72V
  • Dimension:261*216*119mm
  • Grounding: Common negative
  • Battery Input Voltage Range: 8V~32V
  • MPP voltage range:V(BAT)+2V~108V
  • Rated Charge Power : 750W/12V, 1500W/24V, 2250W/36V ,3000W/48V
  • RS485 Interface: 5VDC/200mA(RJ45)
  • Installion Notes:First connect the battery;Then connect the load; Finally connect the solar panel.
  • ACOPOWER 50A MPPT SOLAR CHARGE CONTROLLER
  • Nominal System Voltage: 12v/24v/36v/48v DC Auto
  • Rated Charge Current: 50A
  • Max. PV Open Circuit Voltage: 150V/138V
  • MPP Voltage Range: V(BAT)+2V~108V
  • Working temperature: -25℃~+50℃
  • RS485 Interface: RS485(RJ45)
  • Dimension: 261*216*119mm
  • Grounding: Common negative Design
  • Battery Input Voltage Range: 8V~68V
  • Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
  • Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
  • Storage temperature: -20℃~+70℃
  • Enclosure: IP33
  • Terminals: 16mm2/6AWG
  • Nominal System Voltage: 12v/24v/36v/48v DC Auto
  • Rated Charge Current: 50A
  • Max. PV Open Circuit Voltage: 150V/138V
  • MPP Voltage Range: V(BAT)+2V~108V
  • Working temperature: -25℃~+50℃
  • RS485 Interface: RS485(RJ45)
  • Dimension: 261*216*119mm
  • Grounding: Common negative Design
  • Battery Input Voltage Range: 8V~68V
  • Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
  • Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
  • Storage temperature: -20℃~+70℃
  • Enclosure: IP33
  • Terminals: 16mm2/6AWG
  • ACOPOWER MIDAS 40A MPPT SOLAR CHARGE CONTROLLER
  • Nominal System Voltage: 12/24VDC Auto
  • Rated Charge Current: 40A
  • Max. PV Open Circuit Voltage: 100V (1) 92V (2)
  • MPPT Voltage Range: (Battery Voltage+2V) ~72V
  • Working temperature: -25℃~+50℃
  • Terminals: Up to 6 AWG
  • Dimension: 10x7.28x2.67 in / 255×185×67.8mm
  • Grounding: Common negative
  • Battery Input Voltage Range: 8V~32V
  • Rated charge Power: 520W/12V 1040W/24V
  • RS485 Interface: 5VDC/200mA(RJ45)
  • Storage temperature: -20℃~+70℃
  • Enclosure: IP33
  • Weight: 3.75lbs / 1.7kg
  • Nominal System Voltage: 12/24VDC Auto
  • Rated Charge Current: 40A
  • Max. PV Open Circuit Voltage: 100V (1) 92V (2)
  • MPPT Voltage Range: (Battery Voltage+2V) ~72V
  • Working temperature: -25℃~+50℃
  • Terminals: Up to 6 AWG
  • Dimension: 10x7.28x2.67 in / 255×185×67.8mm
  • Grounding: Common negative
  • Battery Input Voltage Range: 8V~32V
  • Rated charge Power: 520W/12V 1040W/24V
  • RS485 Interface: 5VDC/200mA(RJ45)
  • Storage temperature: -20℃~+70℃
  • Enclosure: IP33
  • Weight: 3.75lbs / 1.7kg
  • ACOPOWER 30A MPPT SOLAR CHARGE CONTROLLER
  • Nominal system voltage: 12/24VDC Auto
  • Battery input voltage range: 8V~32V
  • Max.PV input power: 12V/390W, 24V/780W
  • Working environment temperature: -25℃~+50℃
  • Grounding: Common negative
  • Power Terminals: 6AWG(16mm2)
  • Dimensions: 228x164x55mm
  • Rated charge current: 30A
  • Max.PV open circuit voltage: 100VDC
  • MPP voltage range: V(BAT+2V)~72V
  • Storage temperature range: -35℃~+80℃
  • Communication: RS485
  • Enclosure: IP30
  • Weight: 1.2kg
  • Nominal system voltage: 12/24VDC Auto
  • Battery input voltage range: 8V~32V
  • Max.PV input power: 12V/390W, 24V/780W
  • Working environment temperature: -25℃~+50℃
  • Grounding: Common negative
  • Power Terminals: 6AWG(16mm2)
  • Dimensions: 228x164x55mm
  • Rated charge current: 30A
  • Max.PV open circuit voltage: 100VDC
  • MPP voltage range: V(BAT+2V)~72V
  • Storage temperature range: -35℃~+80℃
  • Communication: RS485
  • Enclosure: IP30
  • Weight: 1.2kg

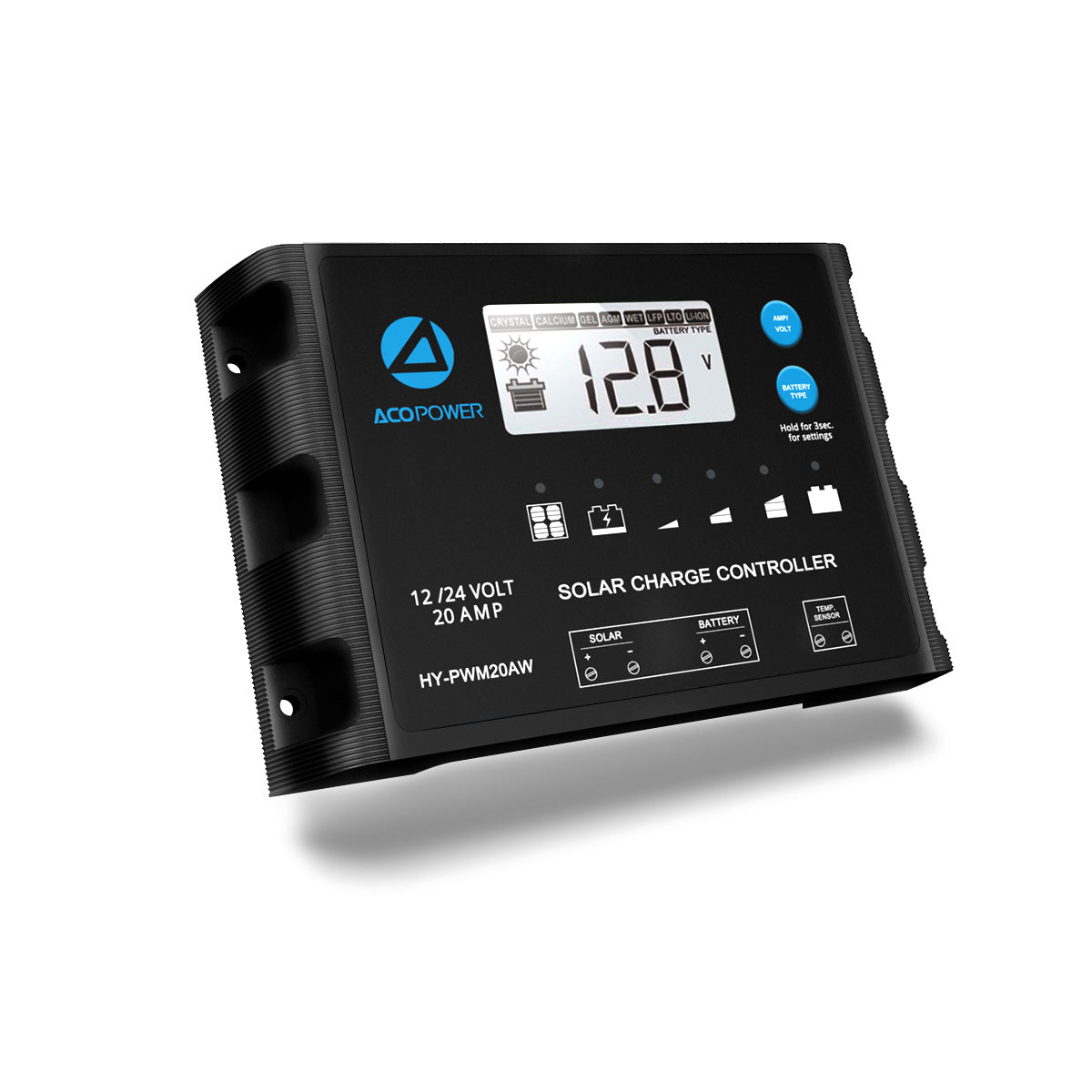

  • ACOPOWER 20A PWM CHARGE CONTROLLER
  • Nominal Voltage: 12V/24V DC
  • Rated Charge Current: 20A
  • Battery Start Charging Voltage: 3V
  • Operating Temperature: -40°F to 140°F
  • Terminals: Up to 10 AWG

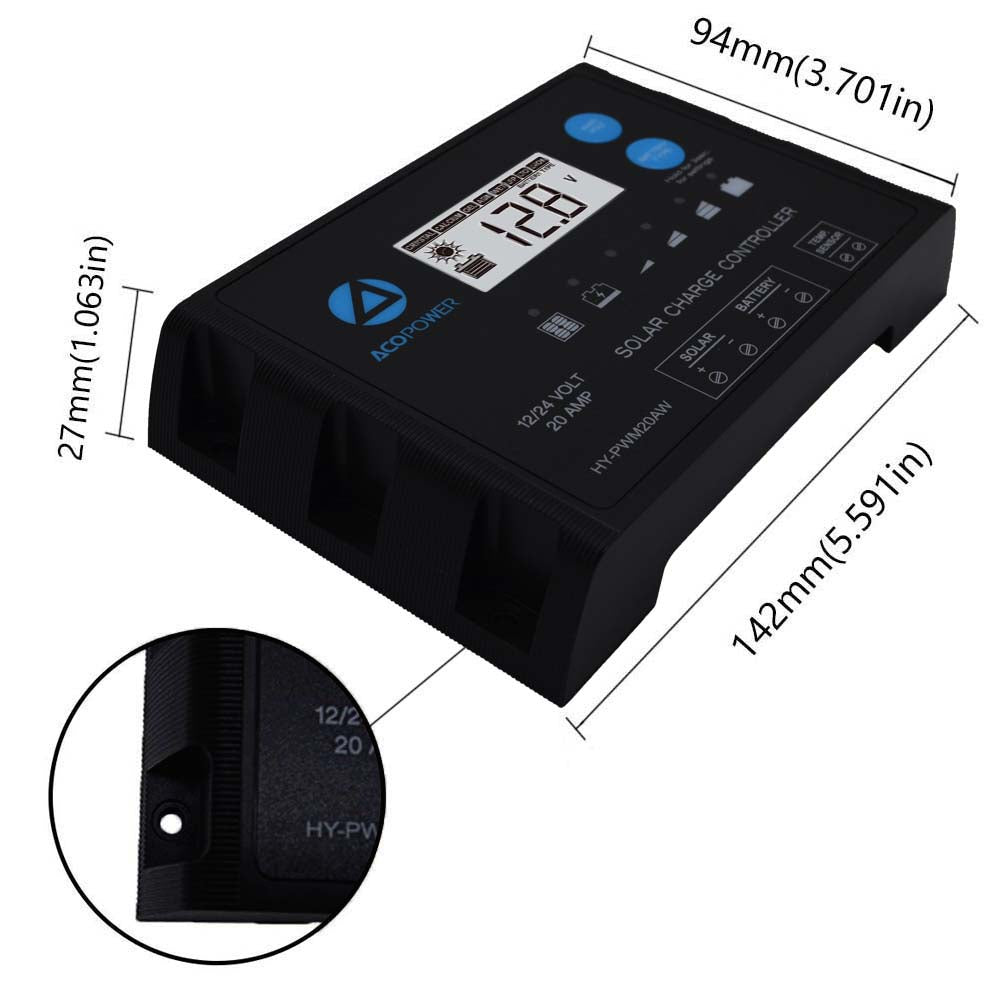

  • Dimensions: 5.59x 3.7x 1.06 inches
  • Grounding: Common Negative
  • Max. PV Input Voltage: 50V
  • Temperature Compensation Coefficient: -24mV/°C
  • Storage Temperature: -40°F to 185°F
  • Enclosure: IP65
  • Weight: 1.1 lbs
  • Nominal Voltage: 12V/24V DC
  • Rated Charge Current: 20A
  • Battery Start Charging Voltage: 3V
  • Operating Temperature: -40°F to 140°F
  • Terminals: Up to 10 AWG
  • Dimensions: 5.59x 3.7x 1.06 inches
  • Grounding: Common Negative
  • Max. PV Input Voltage: 50V
  • Temperature Compensation Coefficient: -24mV/°C
  • Storage Temperature: -40°F to 185°F
  • Enclosure: IP65
  • Weight: 1.1 lbs
  • WARRANTY INFORMATION
  • Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
  • Solar Charge Controllers: The controller itself comes with a 1-year warranty.
  • Accessories: 1-year material warranty
  • Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
  • Solar Charge Controllers: The controller itself comes with a 1-year warranty.
  • Accessories: 1-year material warranty
  • USER MANUAL
